LOUVRE Horizontal SLAT SLIDING Gates - SQM Guide

HEAVY DUTY LOUVRE SLIDING GATES

Horizontal Model

How to Get Fast Prices

- SMS me your gate frame size to 0414237573

- Tell me what height and width of the sliding gate

- Tell me colour of slats

For example a typical Horizontal sliding gate 5000 wide x 1400 high with 24mm air flow gaps and built Vertical slats and in Black or White would be $1964.  That works out at $281 per SQM.

We are DIY only and the pickup is from Narangba.

• The SLAT & FRAME COLOURS WE STOCK


•  Merbau Woodgrain


• Dark Grey - Flat

• Satin Black

• Red Cedar Woodgrain

• Gloss White

• Gloss Shale Grey
• Cream
• Paperbark
•


The LOUVRE RAILS WE STOCK

 Gloss White

Satin Black

Dark Grey

We carry 76x76mm or 100x100 Aluminium Posts here as well if needed

All our slats are a Heavy Duty 100mm High x 16mm Thick aluminium profile with 2 reinforcing ribs inside. It's powder coated so will give you at least a decade of no paint or maintenance.

Our Louvre slat holders are a rigid extrusion with laser cut slat holes that hold the slats on a fixed angle. The extrusion is 65mm wide

When slats are inserted it leaves a 10mm gap between slats but the airflow gap is 24mm.

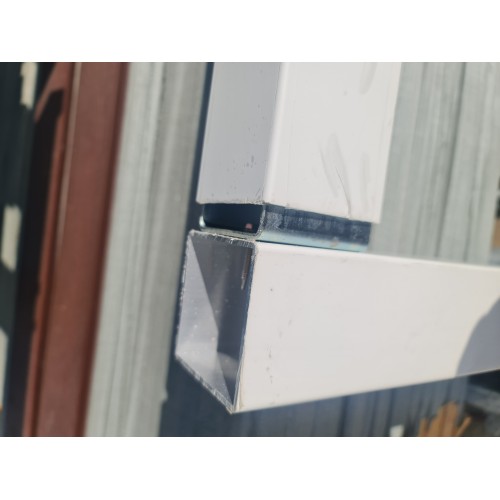

There is a 76x76 box frame around the ENTIRE SLIDING GATE including the 2 CENTRE BREAKERS so it is very STRONG & CHUNKY

So it's a sleek and strong finish where all slats slide into its housing.  The screws are external so when you fit, decide which side will see them.



We cut orders on Tuesdays & Thursdays so get your order in before that & we work till all jobs are out.

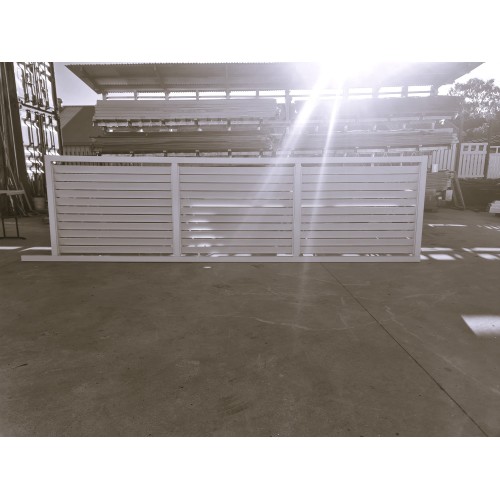

Your height won't normally divide equally for a full final louvre so there are fixed widths you need to work with that go between the frame and first louvre.  Eg 1400mm high would leave a 32mm gap between the frame on top and bottom before the louvre track starts.  See white image as an example.

Remember the HEIGHT size you give us, the louvre Sliding Gate will be cut to that size & we will do the allowances for the frame supplied around it.

With a sliding Gate most would have it slide between the first and last post so you should add more width if this is how your going to operate yours.  If you use my rollers track and wheels then this will add 70mm in height once installed.  So if you buy a 1400 high sliding gate from me, once installed, if using my roller kit, the final height would be 1470mm off the ground.

We are a small family run Brisbane company but we fill all our orders each cut day and we never leave anyone hanging. Our prices are transparent and the price algorithm we use is a fair price for all for the fast service provide. I can quote in 5 minutes so don't be afraid to ask for new sizes if needed.

My direct mobile is 0414237573 so feel free to switch to SMS which can be faster.

If you need posts then it's $40 per metre cut to size. Posts are in Black or White, Dark Grey or Merbau alloy. All 76x76mm strong aluminium posts that are matching colours.  Or $70 per metre in white or black in 100x100mm.

We don't do any  home Installing or site visits at all. We are just DIY.

This means it's all cut to your sizes & all the screws included and you'll collect flat pack.

All you need at home is a tek drill and a bit of time.

PRICES - Cut to size then you assemble at home

• We can assemble the gate in Narangba for $350, but you'd need a large trailer to take it away or we can also deliver.

.

WE ALSO MAKE STANDARD FLAT SLAT SLIDERS AT AROUND $30 PER SQM CHEAPER

What you should know to place an order:

- Payment of $250 needs to be made for any custom orders for each panel

- We cut Tuesdays and Thursday each week so have orders in before that

- Protective sheets will be left on the material for you to remove.

- Allow 3-6mm difference in final size

BULKY GOODS DELIVERY

- If only buying 1 x gate or 1 x panel then Australia wide wrapping and shipping is =$120.

- If buying more, then see the flat rate shipping Info below:

-$140 flat rate fee to the Northside of Brisbane

-$200 flat rate fee to the Southside of Brisbane

-$250 flat rate fee to the Gold Coast, Ipswich or Sunshine Coast

-$350 flat rate fee to Sydney or Rockhampton

-$450 flat rate fee to Melbourne or Townsville

**We use backload trucks for most of the above and usually do all drops in other country towns we pass but following that main highway.  Sometimes these deliveries will be after hours

-All other areas we can quote to a home in your state or country town
