Square Top Security Bar Gates - Custom sizes - SQM Guide
- Availability: In Stock
- Product Code: Aluminium Screening
- $173.00
SQUARE TOP SECURITY SWING GATES
CUSTOM ALUMINIUM SECURITY GATES
Cut to Your Size • Flat Packed • DIY Assembly
Modern Square Top Design
Satin Black • Dark Grey • Gloss White
DIRECT FROM THE NARANGBA FACTORY
10 Richards Road, Narangba QLD 4504
Built using our exclusive pre-punched aluminium rail system with concealed fixings for a clean professional finish.
HOW TO GET A FAST PRICE
Simply SMS 0414 237 573 with:
- Your required gate panel width and height
- Your colour: Satin Black, Dark Grey or Gloss White
- Your preferred top: Square Top or Spike Top
Gates are generally available up to approximately 2000mm wide x 2100mm high per gate leaf.
SQUARE TOP OR SPIKE TOP

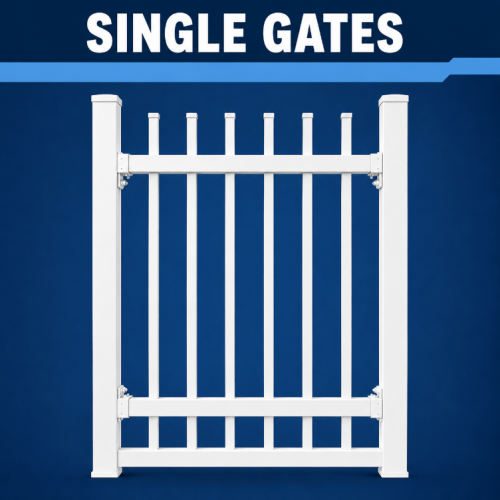

Our Square Top is the standard design and gives the gate a clean, modern and contemporary appearance.
For customers wanting a more traditional security look, Spike Tops are also available as an optional upgrade.
Both designs use heavy-duty 25mm x 25mm aluminium vertical security bars combined with our concealed horizontal rail system.
EXAMPLE PRICE
A typical 1200mm wide x 1800mm high Square Top security swing gate with approximately 95mm bar gaps in Satin Black, Dark Grey or Gloss White is approximately:
Approximately $173 per m²
Supplied cut to size and flat packed ready for DIY assembly.
HEAVY DUTY ALUMINIUM CONSTRUCTION
The vertical security bars are manufactured from 25mm x 25mm x 1.2mm powder-coated aluminium.
Our exclusive 40mm x 40mm horizontal rail system is pre-punched at approximately 95mm centres. The vertical bars pass through the rails and are mechanically secured before the fixings are concealed behind a locking aluminium cover.
This creates a strong security panel with a clean appearance and no exposed fixing screws on the finished face.
The surrounding gate frame is manufactured from 50mm x 50mm aluminium box section using concealed frame fittings.
AVAILABLE COLOURS
• Dark Grey
• Gloss White
Bars, horizontal rails and gate framing can be supplied in matching powder-coated finishes.
WHY CHOOSE OUR DIY SECURITY GATES?
- Modern Square Top design
- Optional Spike Top upgrade
- Custom cut to your required width and height
- Heavy-duty aluminium construction
- Rust resistant and suitable for Australian conditions
- Durable powder-coated finish
- 25mm x 25mm vertical security bars
- Approximately 95mm standard bar spacing
- Exclusive two-part concealed horizontal rail system
- Hidden stainless-steel fixings
- Supplied flat packed for DIY assembly
- Matching fencing and sliding gates available
HINGES, LOCKS & POSTS
We stock a full range of hardware to complete your gate including 180-degree pivot hinges, tension hinges, latches, locks and gate hardware.
Allowance may need to be made in your opening size for your selected hinges and locking hardware. We can advise the correct deductions when quoting.
76mm x 76mm Posts = $40 per metre
100mm x 100mm Posts = $70 per metre
DIY FLAT PACKED SYSTEM
Your gate is cut to size at our Narangba factory and supplied as a DIY kit.
The internal security panel is assembled first using the pre-punched horizontal rails and vertical bars.
Once the bars are correctly positioned and squared, the concealed fixings are secured and the aluminium rail covers fitted.
The 50mm x 50mm gate frame is then assembled and the completed security panel fitted securely inside the frame.
The result is a professional custom aluminium security gate without paying for a fully welded fabricated gate.
IMPORTANT CUSTOM ORDER INFORMATION
- A $100 payment is required for custom cutting of each gate or panel for pickup orders
- Custom cutting is generally completed on Tuesdays and Thursdays
- Please allow approximately 3–6mm manufacturing tolerance on finished sizes
- Standard internal bar gaps are approximately 95mm

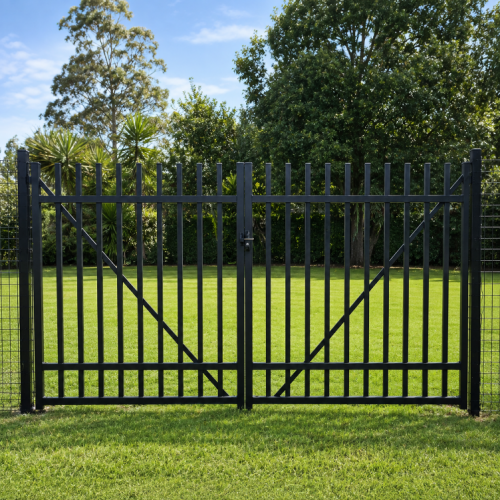

- Usually supplied with a rear mounting diagonal brace
- The first and last gaps may vary slightly depending on the overall gate width
- Australia-wide shipping available
MATCHING SECURITY FENCING & SLIDING GATES AVAILABLE
WE CUT IT TO SIZE – YOU ASSEMBLE IT AT HOME
AUSTRALIA-WIDE BULKY GOODS DELIVERY
Australia-wide freight is available. For a single gate or panel, wrapping and shipping starts from approximately $120.
- North Brisbane – $140
- South Brisbane – $200
- Gold Coast, Ipswich or Sunshine Coast – $250
- Sydney or Rockhampton – $350
- Melbourne or Townsville – $450
For all other metropolitan, regional and country locations, send us your suburb and postcode for a freight quote.
Ideal for homes, warehouses, commercial properties, schools, industrial sites, boundary security and infrastructure projects.
