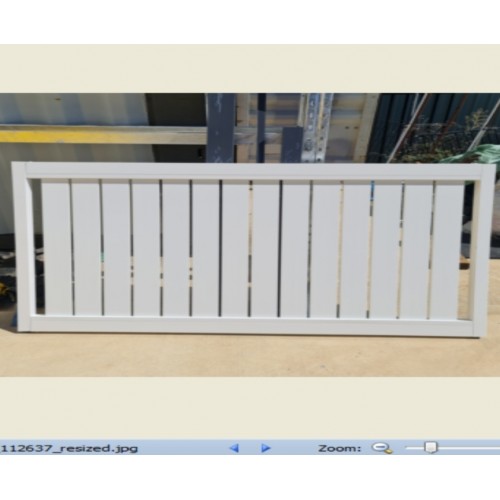

110mm x 50mm Chunky Vertical Sliding Gate - Top and Bottom Rails - Cut to Size then you DIY

White Colour Only - Heavy Duty Sliding Gates

Made to measure custom sizes then you DIY

We use white slats connected to channels with a 0mm, 10mm, 16mm, 40mm or 80mm gap between the vertical Slats

The listed price is an estimate of vertical Sliding Gate in Gloss white per Square Metre at 5000w x 1730h with an 110mm x 50mm top and bottom Rail with 40mm gaps between the slats. Supplied cut to size then you DIY.

Posts are extra and available in 76x76mm @ $40 per metre or the real beefy Hamptons 100x100 @ $70 per metre.

• Custom Sliding gates in vertical slats around $198 per sqm, cut to size but DIY
• The custom panels uses a Top and Bottom Rail made from 110 x 50mm (it is a combination of a 80 and 30mm channels put together.
• The sides of the gate are also 50x50mm.
• All the screws that lock in the slats are screwed behind a concealed proprietary channel that looks sleek and a beautiful finish.
• There will always be variable gaps between the frame and first and last slat as most times the width you have wont divide equally between the slats and the set gaps.
• We include a mult fit 400mm tail on Gate to help to connect to any motor you may be using.
• If using my manual roller kit allow 70mm from top of your concrete to underside of the gate as the gap.  Therefore if you needed an 1800h gate then you would ask for a gate to be built  at 1730 high.

Our standard service is we cut the pieces to size then its supplied flat pack. You then pick them up and assemble and install.
