Black Gate Wheel Heavy Duty - Free Delivery
- Availability: In Stock
- Product Code: Aluminium Screening
AN ABSOLUTE - HEAVY DUTY GATE WHEEL
360 DEGREE SWIVEL
TWO Years Warranty
The bracket is made of high quality thick 6mm steel plate. The swivel has double ball bearings and these bearings a greaseable with a serviceable grease nipple.
**Price includes Delivery**
The solid wheel is made of high elastic polymer material, which provides higher wear resistance and greater load capacity. The rim of the tyre is metal. No air needed for this tyre
No additional tools are required for installation. Simply use the included wrench and U-shaped mounting screws to complete the installation. If this style of bracket doesn't suit your job, then you could use your own DIY TEK screws (not included) to fit to your gate frame.
Thanks to their ability to rotate 360°, their high-strength tires and their robust springs, these casters or gate jockey wheels have a high degree of ground adaptability, so they work smoothly on a variety of floors.
5mm thick spring
This caster has an impressive load capacity of up to 270 Kilos, providing reliable support for your heavy duty steel doors and these wheels will greatly help to extend the life of your swing gates.

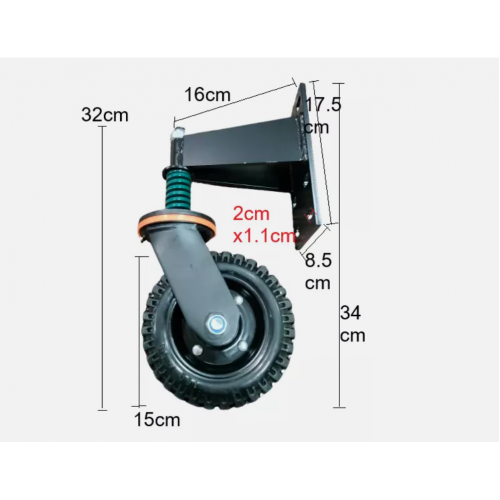

Check the size drawing to make sure you have enough clearance for such a beast of a gate wheel
Specifications
- Fully Extended Sizes: 260 Wide x 300 high
- Gate wheel weight: 4kgs
- Force weight: 270kgs
- Width of Tyre: 155mm
- Thickness of tyre:45mm
- Greaseable: Yes
- Colour: Black
- Fixing Hardware: U-Brackets only but you can use your own fixings
- Swivel Degrees: 360 degree
- Top mounting plate size: 175x85mm
- Warranty: 24 months
