Single Swing Gate- Alternate 38 & 100mm Base with Top 38mm battens Hamptons
- Availability: In Stock
- Brand: Direct Import
- Product Code: Aluminium Screening
- $305.00

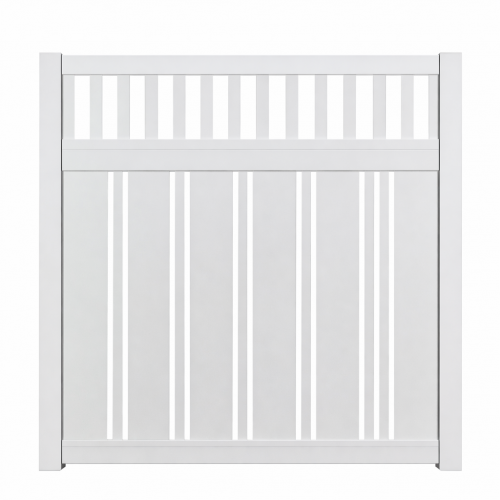

White / Dark Grey / Black Heavy-Duty Swing Gates (Top Battens – Alternate Hamptons Style)
Made to measure — we cut to your exact sizes, supply flat-packed, and you DIY assembly & install.
What These Gates Are
Heavy-duty aluminium swing gates made with vertical bottom slats with a 100mm and 38mm alternate combo and Hamptons-style top 38mm battens. We build using White, Monument (dark grey) or Black powder-coated aluminium.
Example estimate for a gate in Gloss White / Satin Black / Matt Dark Grey with
40mm bottom gaps and 100mm top batten gaps:
2000mm W × 1700mm H = $1037 (approx. $305 per m²)
Pricing is a guide only — every gate is made to your exact size and quoted individually.
Build Details
- Bottom slat gaps: 0mm, 10mm, 16mm, 40mm or 80mm between vertical slats.
- Top battens: 38mm battens spaced between 45mm and 165mm (100mm typical default).
- Top & bottom rails: 80×50mm (made from a combined channel system for strength).
- Mid rail: 110×50mm.
- Concealed fixing: screws sit behind a concealed proprietary channel for a clean, premium finish.
- Reality of custom widths: there will usually be a slightly different gap on the first/last slat because most widths don’t divide perfectly.
Hardware & Options
- Drop-in 180° pivot hinges: $60 per gate.
- Posts (optional): 76×76mm available in 8 colours.
- Australia-wide shipping available (see delivery section below).
How to Order
- Send us the gate frame width you need.
- If using our hinges: allow approx. 25mm gap. If adding a lock: usually allow another 10mm.
- Choose your slat colour, frame colour, and gap sizes.
- We cut to size, flat-pack it, and you assemble & install.
Specifications
- Vertical bottom slats: 100×16mm 1.2mm thick (heavy duty) — 65mm upgrade available, with a 38mm alternate slat
- Vertical top battens: 38×16mm.
- Horizontal rails: 80×50mm, 1.5mm thick.
- Side frame: 50×50mm.
- Top batten height: approx. 295mm default visible (can be made to your requested height).
- Default top batten gaps: 100mm default (or any gap you request).
Finish & Features
- Powder coated: Gloss White / Matt Monument Grey / Satin Black
- All aluminium (strong, long-life, low maintenance)
- DIY suitable for most handy people
- Includes screws & hardware to assemble the gate
Quick Quote Tip:
Text your size + colours + gaps + postcode and we’ll price it up fast.
Warehouse & Production Schedule
Warehouse: 10 Richards Rd, Narangba QLD 4504
Open Monday–Friday 7:30am–5:00pm. Saturday pickups available if ordered midweek.
Cutting days: Tuesdays & Thursdays — please have orders in beforehand.
Bulky Goods Delivery
1 gate / 1 panel: Australia-wide wrap & ship = $120
Flat-Rate Shipping (Multiple Items)
| Region | Flat Rate |
|---|---|
| Northside Brisbane | $140 |
| Southside Brisbane | $200 |
| Gold Coast / Ipswich / Sunshine Coast | $250 |
| Sydney / Rockhampton | $350 |
| Melbourne / Townsville | $450 |
We use backload trucks for many runs and commonly drop into towns along the main highway route. Deliveries can sometimes occur after hours. For all other areas, we can quote delivery to your home or regional town.
