Post base or Header beam drop post Bracket for 50x50mm Posts in BLACK

50×50mm Aluminium Bracket – Medium Duty

Slides perfectly into our 50×50 aluminium posts

A versatile small bracket designed for lightweight structural support and DIY screening projects.

Common Uses

1. Concrete base for 50×50 posts
   Ideal for smaller screens or enclosures where the post does not carry major load.
2. Header beam drop-post
   Perfect when installing screens from the roof/header down and you don’t need a full post to the ground.

Brackets are made from high-quality aluminium.

These 50×50 brackets are best suited to smaller jobs such as:

• Window screens
• Air-conditioning compressor screens
• Bin enclosures
• Pool pump boxes
• Carport infill screens
• Balcony screens to reduce rain and wind

How to Use

As a Post Base

1. Attach 1 × bracket to the concrete using concrete anchors.
2. Slide your 50×50 post over the bracket.
3. Fix the post to the bracket with TEK screws.

As a Header Beam Drop-Post Bracket

1. Screw the bracket into the header beam at the height required for slat alignment.
2. Slide your 50×50 post onto the bracket.
3. Add an end cap to finish the post neatly.

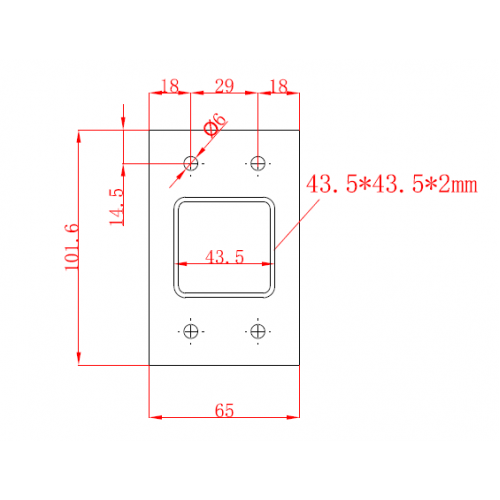

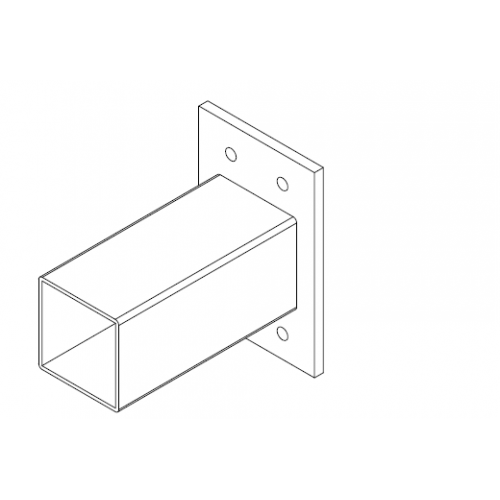

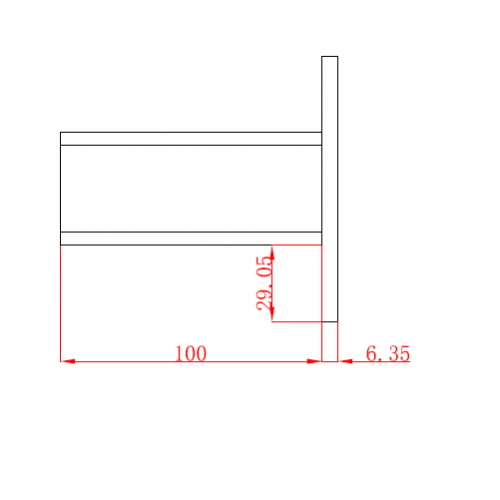

Please refer to the drawing to ensure this bracket suits your measurements and specifications.
